How to Choose the Right Solar Combiner Box to Protect the Safety and Reliability of Your Inverter

Addtime:2023,11,27

A combiner box is a device that combines the output of several solar strings together. It helps bring the output of several solar strings together, so people can make the most of the available solar energy and use it for residential or commercial purposes. The combiner box houses all the wiring from the solar panels and collectively outputs them into a single connection, allowing cables to be neat and tidy . The device can ensure that the PV system is easy to cut off the circuit during maintenance and inspection, and reduce the scope of power outage when the PV system fails. A typical combiner box contains the following components: circuit breaker, fuse, isolator switch,busbar, bridge bar, enclosure, terminal strip, and rapid shutdown device.

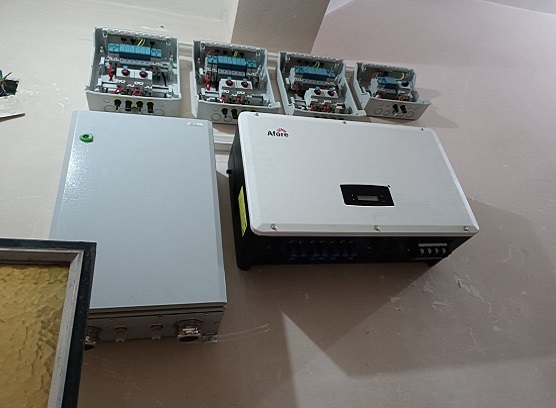

solar combiner box.jpg


Choosing the Right Solar Combiner Box

Assess Your System's Specifications: Match the combiner box to your system's voltage and current. It should handle the maximum output your solar array can produce.

String Input Capacity: Consider the number of strings in your solar array. The combiner box should have enough inputs to accommodate all of them and allow for potential future expansion.

Surge Protection: Opt for a combiner box with built-in surge protection, especially if your installation is in a lightning-prone area. This feature is vital for protecting your inverter and other system components.

Quality and Durability: Choose a combiner box built with high-quality materials, ensuring it can withstand environmental conditions like extreme temperatures and UV exposure.

Safety Features: Safety is paramount. Look for boxes with touch-safe fuse holders and other features that enhance safety during maintenance.

Monitoring Capabilities: Advanced combiner boxes offer monitoring features for each string, aiding in performance tracking and troubleshooting.

Compliance and Certifications: Ensure the combiner box complies with industry standards and carries certifications like UL or IEC. This compliance is a testament to its safety and quality.

Ease of Installation and Maintenance: A user-friendly design that simplifies installation and maintenance can save time and reduce costs in the long run.


Summary

The right solar combiner box is more than just a junction box; it's a crucial component that ensures the safety and efficiency of your solar PV system. By carefully selecting a combiner box that matches your system's needs and adheres to safety standards, you can enhance the overall performance and longevity of your solar installation. Remember, a small investment in the right combiner box can prevent costly repairs and downtime in the future.
