The global expansion of solar power has established 1000V and 1500V DC systems as the standard for commercial and utility-scale projects. While higher voltages boost efficiency, they also intensify challenges like DC arc energy, short-circuit currents, and overall safety risks. Consequently, the DC circuit breaker (DC MCB or MCCB) becomes a cornerstone of photovoltaic (PV) system protection. An incorrect selection can lead to failure to interrupt faults, dangerous arc flashes, fires, equipment damage, and significant downtime. This guide provides a systematic engineering approach to selecting the optimal DC circuit breaker.

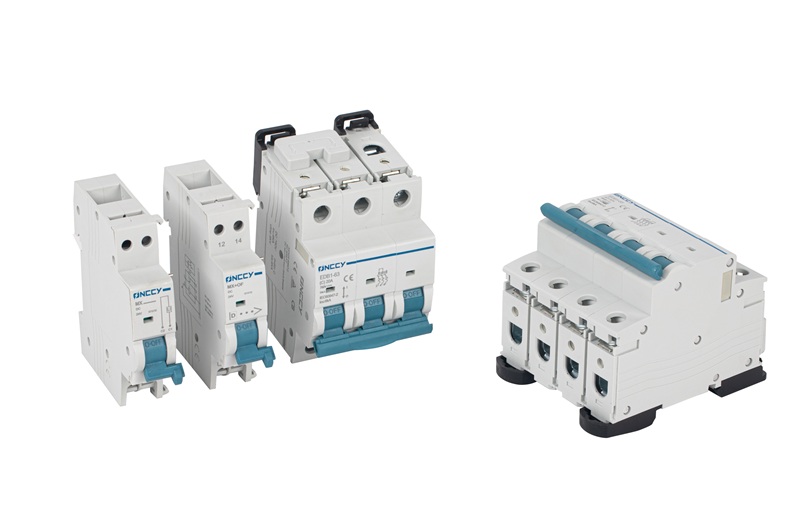

Step 1: Identify the System Type (Determines Pole Count)
The system's grounding configuration is the primary factor, dictating how many poles (P) are needed for safe disconnection.
Negative Grounded System: Only the positive conductor is at full voltage relative to ground. Therefore, disconnecting the positive pole is sufficient.
Breaker Options: 1P, 2P, 3P, or 4P.
Mid-Point Grounded System: Voltage is balanced across both poles, requiring simultaneous disconnection of both positive and negative conductors.
Breaker Options: 2P or 4P.
Floating (Ungrounded) System: Both conductors have a high potential to ground, making it the most common in modern plants. Both poles must be disconnected.
Breaker Options: 2P or 4P.
Step 2: Confirm the Rated Voltage (Determines Series Poles)
DC arcs are persistent as the current lacks a natural zero-crossing point like AC. Higher voltages require more series poles to stretch and extinguish the arc effectively.
800–1000V DC: Typically requires 2 poles in series.
1000–1500V DC: Typically requires 3 to 4 poles in series.
For mid-point or floating systems, the pole count must be equal for both positive and negative lines.
Step 3: Determine the Rated Current (Ampere Rating)
The breaker's current rating must safely handle the operational current of the PV string or circuit.
General Rule: Rated Current ≥ PV String Short-Circuit Current (Isc) × 1.25 (safety factor).
Example: A string with Isc = 12A requires a breaker rated for at least 15A. The next standard rating (e.g., 20A) should be selected.
High-Current Systems: For larger arrays or battery applications, current capacity can be increased by using a 4P breaker wired in a 2P+2P parallel configuration.
Step 4: Verify the Breaking Capacity (Short-Circuit Performance)
Breaking capacity is the maximum fault current the breaker can safely interrupt. It is critical to select a breaker whose rating exceeds the worst-case prospective short-circuit current of the system.
Calculation: The fault current must be calculated considering maximum irradiance, cable resistance, parallel strings, and potential reverse feed from batteries.
Typical Ratings:
6 kA: Small installations
10 kA: Commercial projects
15 kA: Utility-scale arrays
DC faults are particularly hazardous as the arc does not self-extinguish, making robust arc-quenching technology essential.
Step 5: Consider Additional Engineering Factors
Ambient Temperature: PV environments can be extreme. Ensure the breaker is rated for high temperatures (e.g., 50-70°C).
Compliance: The breaker must meet relevant international standards, such as IEC 60947-2 for circuit-breakers and IEC 60364-7-712 for PV safety.
Polarity: Some breakers are polarized; using bidirectional breakers simplifies installation.
System Integration: Ensure compatibility with other system components like combiners, surge protectors, and rapid shutdown devices.
Selection Example: 1500V Utility-Scale Plant
System Type: Floating → Requires 2P or 4P.
Voltage: 1500V → Requires 4P in series.
Current: 12A Isc → 12A × 1.25 = 15A → Select 20A breaker.
Fault Current: 8 kA → Select a breaker with a 10 kA breaking capacity.
Final Choice: A 4P, 20A, 1500V DC MCB with a 10 kA rating.
Why Choose ONCCY for Your DC Protection Needs?
As a specialized manufacturer of solar protection components, ONCCY Electrical offers a complete ecosystem of DC MCBs, MCCBs, isolators, SPDs, and fuses. Our products are engineered for high-voltage DC arc interruption, built to withstand harsh outdoor conditions, and comply with global market standards. We provide factory-direct competitive pricing, reliable quality, and support for OEM/ODM customization, making us the preferred partner for distributors, EPCs, and manufacturers worldwide.
By meticulously following these steps, you can ensure the safety, reliability, and longevity of your PV investment.
