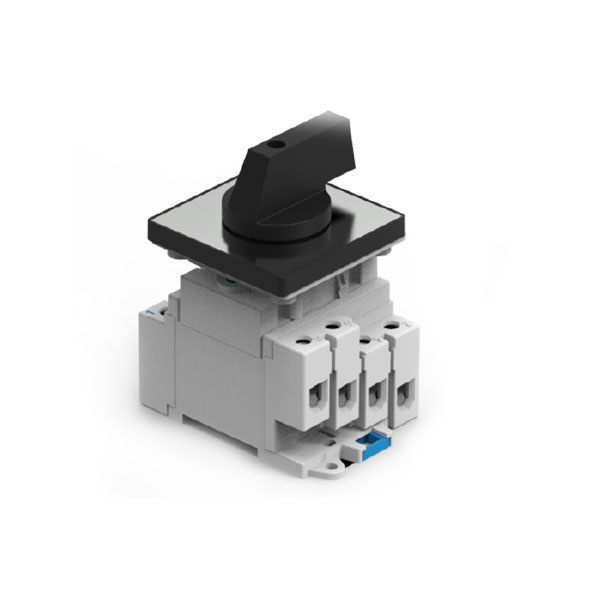

EDS1PM/S32 Panel Mounting Energy Storage DC Isolator

EDS1 series isolation switch is suitable for a power system with rated voltage DC1500V or below and rated current 50A or below. The product can be used for infrequent switching-on and switching-off and can disconnect 1 ~ 4 MPPT lines at the same time. It is especially suitable for isolating lines in HVDC transmission and distribution systems, such as cutting off the high voltage direct current between solar panels and inverters

Product Benefits

• Installed at any angle can achieve IP67 waterproof level

• UV resistance and V0 flame retardant material

• Contact Silver Plating, silver layer thickness to the industry’s highest standards

• Arcing Time in 3ms

• Breather valve attached on the bottom of the isolator

• No Polarity

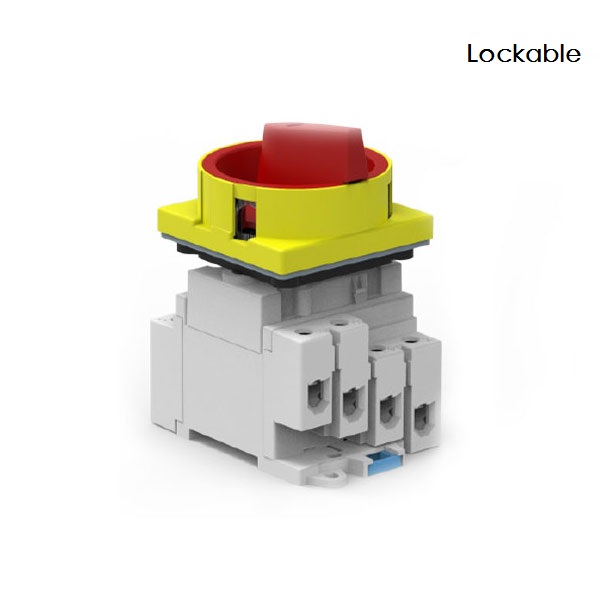

• Lockable at OFF position

• AS 60947.3:2018 and IEC 60947.1:2015 standard

• 5 years warranty, product insurance, and recall insurance available
