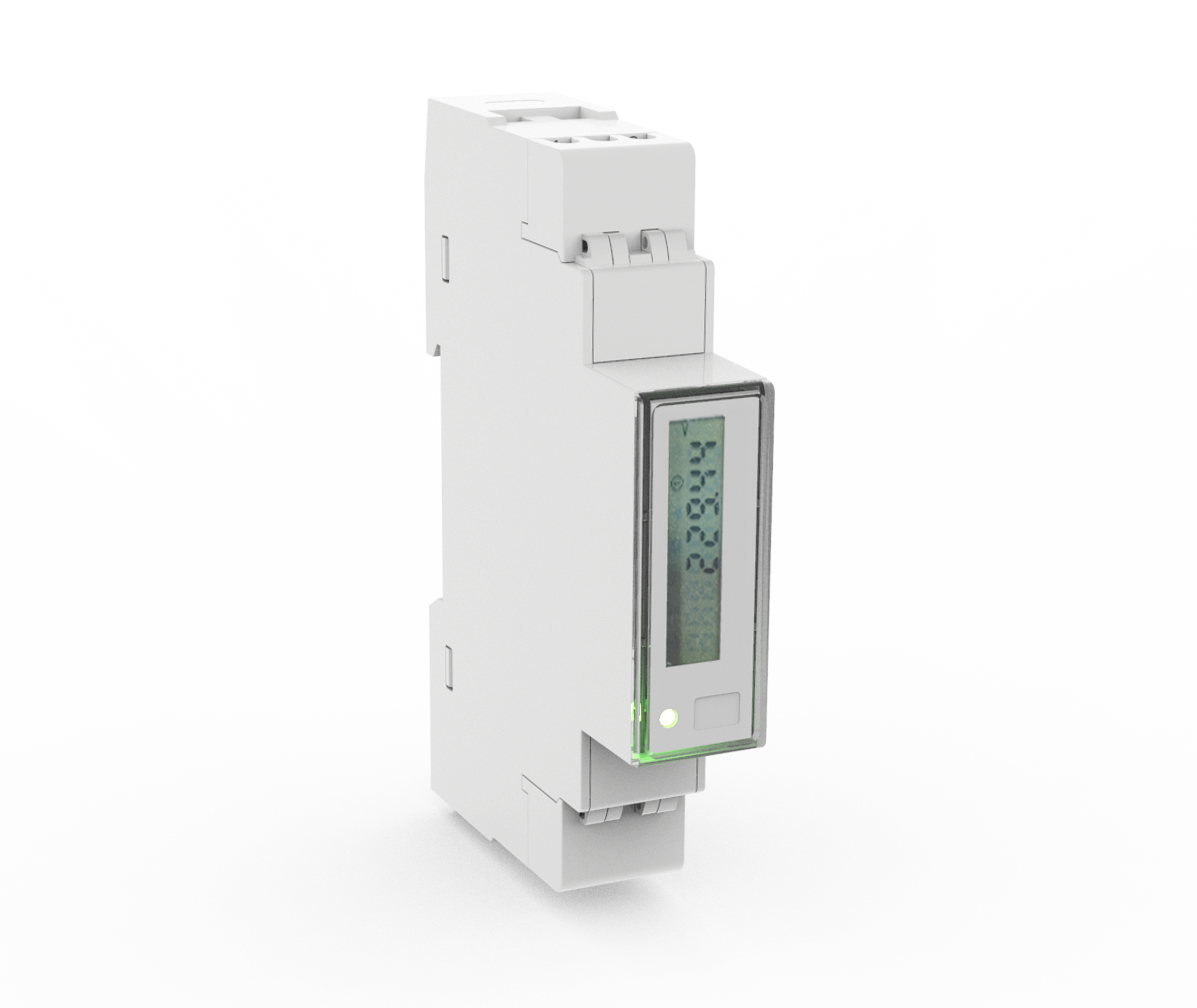

Type JH-EMAM Single-phase Energy Analyzer

Single-phase energy analyzer can measure imported and exported energy or be programmed to consider only the imported one. Housing for DIN-rail mounting, with IP51 front degree protection.

Product Benefits

• Single phase energy analyzer

• Class 1 (kWh) according to EN62053-21

• Class B (kWh) according to EN50470-3

• Accuracy ±0.5% RDG (current/voltage)

• Direct current measurement up to 45AAC

• Backlit LCD display with integrated touch key-pad

• Energy readout on display: 6 digit

• Variable readout on display: 2 digit

• Energy measurement: kWh ; kWh+by 2tariffs

• System variables, kW, kvar, V, A, PF, Hz, kWdmd, kWdmd peak

• Self power supply

• Dimensions: 1-DIN module

• Protection degree (front): IP51

• RS485 Modbus port
