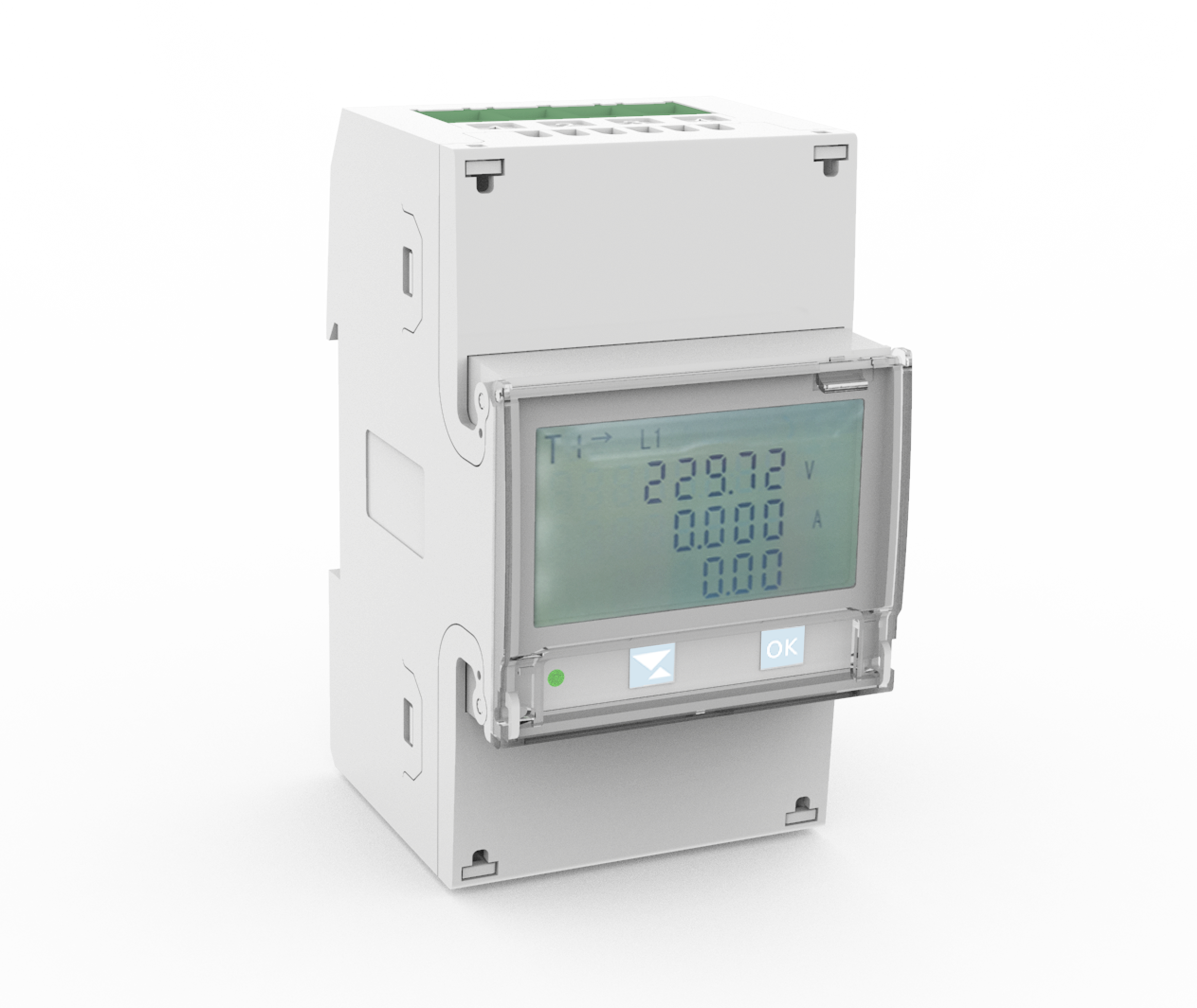

Type JH-EMCM Three-phase energy meter

Three-phase energy meter with backlit LCD display. Housing for DIN-rail mounting, with Ip51 front degree protection. The meter is optionally provided with proportional to the active energy being measured.The meter with Rs485 communication.

Product Benefits

• Three phase energy meter

• Class 1 (kWh) according to EN62053-21

• Class B (kWh) according to EN50470-3

• Accuracy ±0.5% RDG (current/voltage)

• Direct current measurement up to 65AAC

• Backlit LCD display (3x 8-digit)

• Energy readout on display: 6 digit

• Variable readout on display: 2 digit

• Energy measurement: kWh and kvarh (imported/exported); kWh per phase

• System variables: kW, kvar, kVA, VLN, PF, Hz

• Phase variables: kW, kvar, kVA, VLN, A, PF

• Self power supply

• Dimensions: 3-DIN module

• Protection degree (front): IP51

• RS485 Modbus port (optional)
